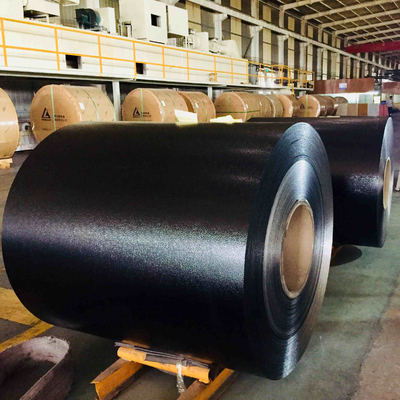

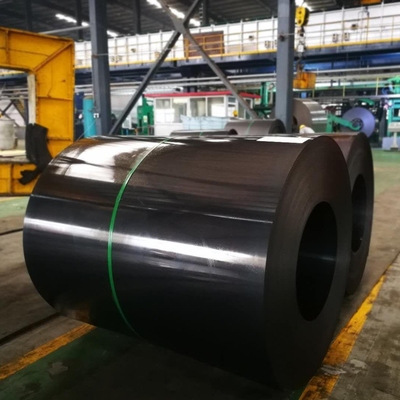

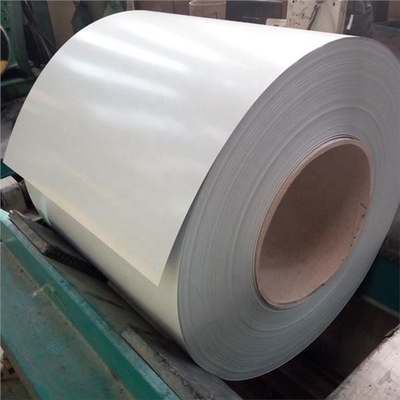

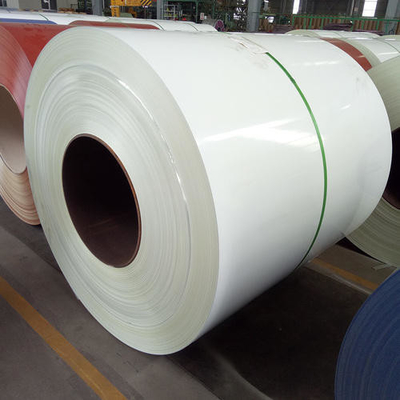

55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching

  • 55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching
  • 55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching
  • 55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching
  • 55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching
  • 55% PPGL Coil RAL DX53D Color Colour Coated Coil Punching
Place of Origin Shandong,China
Brand Name Shandong TISCO
Certification MTC ISO9001
Model Number Color coated steel coil
Minimum Order Quantity 3 Tons
Price Discuss
Packaging Details PVC+ waterproof paper + strong sea-worthy wooden package<br>If you need samples, we can provide them free of charge
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PPGL Steel Coil Standard AiSi, ASTM,
Type Color Coated Steel Sheet Technique Hot Rolled, Prepainted
Surface Treatment Coated Width 600mm-1500mm
Length 1000-12000mm Tolerance ±3%
Processing Service Cutting, Punching, Polishing Application Decoration, Manufacturing, Industry, Building.
High Light

55% PPGL Coil

,

PPGL Coil RAL

,

DX53D Color Colour Coated Coil
Leave a Message
Product Description

Decoration PPGL Coil 55% Al-Zn Alloy Coated Steel SMP Color Coated Steel Sheet



Description


PPGL sheet in coil is a kind of steel Coil with PE, HDP, PVDF, and other coatings. It has good processing and forming,

good corrosion resistance, and the original strength characteristics of the steel plate.This is the PPGL steel coil Profile:

Top(Finish) Coating
Primer Coating
Chromate Coating
Zinc Coating
Base Metal(Cold Rolled Steel Sheet)
Zinc Coating
Chromate Coating
Epoxy, Polyester

The substrate is an annealed cold-rolled steel coil.



Chromated paint is used for cleaning the surface of the cold-rolled coil.

After Chromated, the next is zinc coated. The coil becomes a galvalume steel coil now.

After zinc coated, the next is Chromated again, for cleaning the galvalume steel coil surface again.

The primer coating is used for increasing the adhesion of the top coating. When cold roll forms, the paint will not fall off.

The top paint coating metal is PE or PVD



size:



Grade CGCC,CGCH,G550,DX51D,DX52D,DX53D
Thickness 0.12-4.0mm
Width 600-1500mm
Length 1000-12000mm
Zinc Coating Z40-600 g/m2
Coating Thickness Top-15-35, Back 5-15
Color RAL Color
Surface

Matt,High gloss,Color with two sides,Wrinkle,

Wooden color,Marble
Coil Weight 2-5tons

Chemical Composition

Grade C≤ Mn P≤ S≤ Si≥ Cr≤ Cu≤ Mo≤ Ni≤ V≤
A 0.25 0.27-0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
C 0.35 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
